New Holland have a proven track record of supplying high spec machines to suit the most demanding of commercial customers, but now they are offering a tractor for those who want to do more – with less.

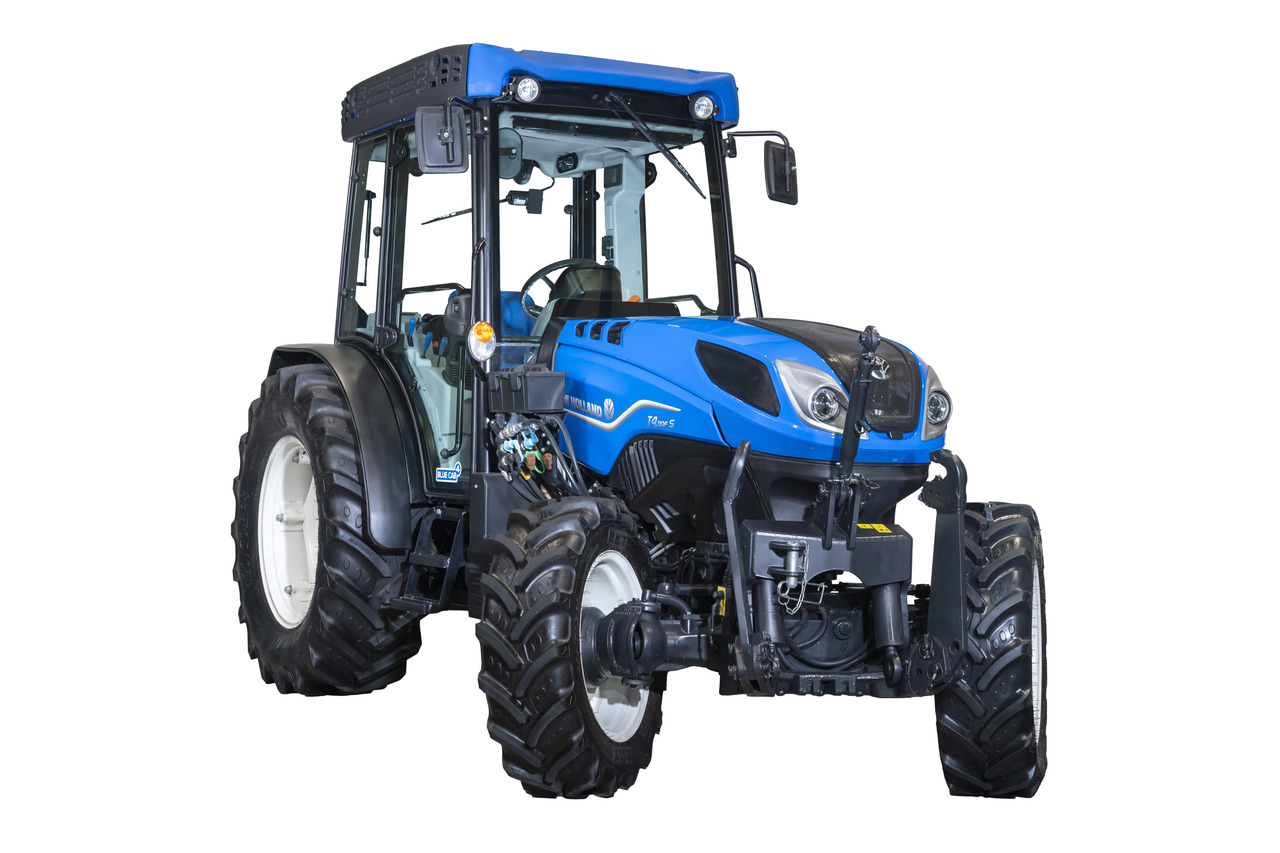

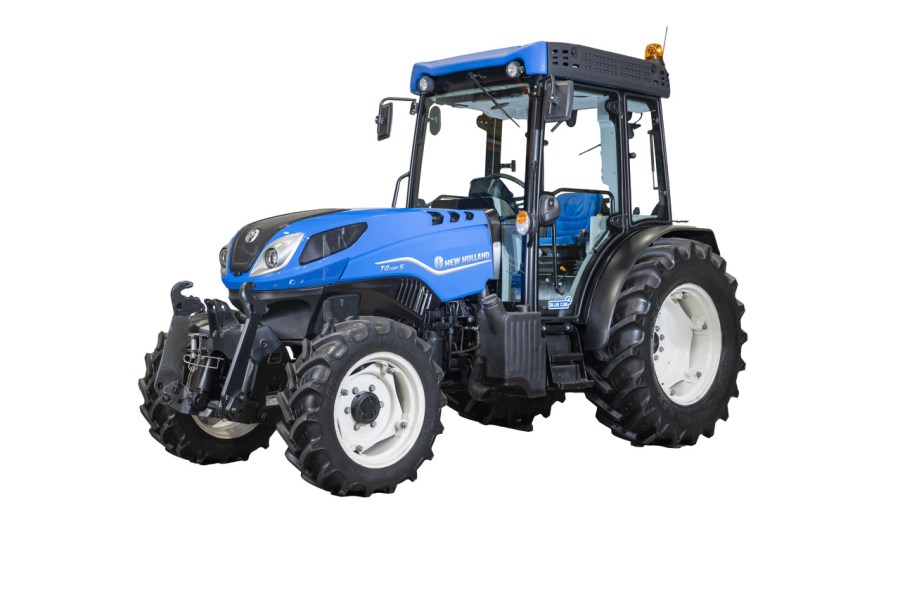

The T4FS range of speciality tractors is the latest range to leave the New Holland plant in Turkey, and combines features of the T4 VNF range with the simplicity of the T4S and T5S Utility products. This produces a tractor with a simplified offering that would complement a fleet, or work perfectly as a mainline tractor for owners wanting to focus on the basics.
Engines
There are two engines available; a 3-cylinder 75hp unit requiring no adblue, or a 4-cylinder block that ranges from 90hp-110hp, using the simple adblue system that New Holland have perfected over the years. Both engines are already used in the New Holland speciality and utility ranges and provide high torque at low rpm for quiet, efficient running. Engine Speed Management (ESM) is available to offer precise engine RPM setpoints at the press of a button, perfect for PTO driven applications when leaving and entering rows.
Drivelines
Synchro Shuttle and Power Shuttle transmissions both offer 40km/h 12×12 gear setups, with creep available as an option. Power Shuttle enables clutchless change of direction, using the steering wheel mounted shuttle lever, and features a hydraulic pto clutch for easy engagement. Pto speed options include 540, 1000, and 540E for the same productivity at lower engine rpm. Front pto can be fitted to the 90,100 and 110 models with standard 4WD axle.
Axles
Three axle configurations are on offer – 2WD or standard 4WD on the range-propping T4.80FS, with standard 4WD and the patented Supersteer 4WD axle available on the 90,100, and flagship 110 model. 4WD standard axle options come in either 1.15m (N) or 1.27m (F) flange-to-flange widths, while Supersteer is offered in F designation only. This results in 1.35m – 1.9m overall tractor widths, depending on tyre specification, to cater for most UK based vineyards.
Hydraulics
As in the premium ranges, New Holland fit dual pumps as standard- meaning one pump to cater for steering and transmission, with another larger pump dedicated to lift and remote valves. This means that oil flow will never be an issue for machines with high demands, and multiple operations can be carried out without fear of ‘robbing’ oil from functions that need it.
Four mechanical remotes can be specified at the rear of the tractor, while two midmount spools are available at the front of the cab. Free-flow returns are fitted front and rear as well to allow best performance for trimmers, leaf removers and the like.
The rear linkage boasts an impressive 2,800kg lift capacity, as well as a fast raise/fast lower function, again to speed things up leaving and entering rows. Front linkage can also be specified as an option, with a 1,800kg lift capacity.
The cab

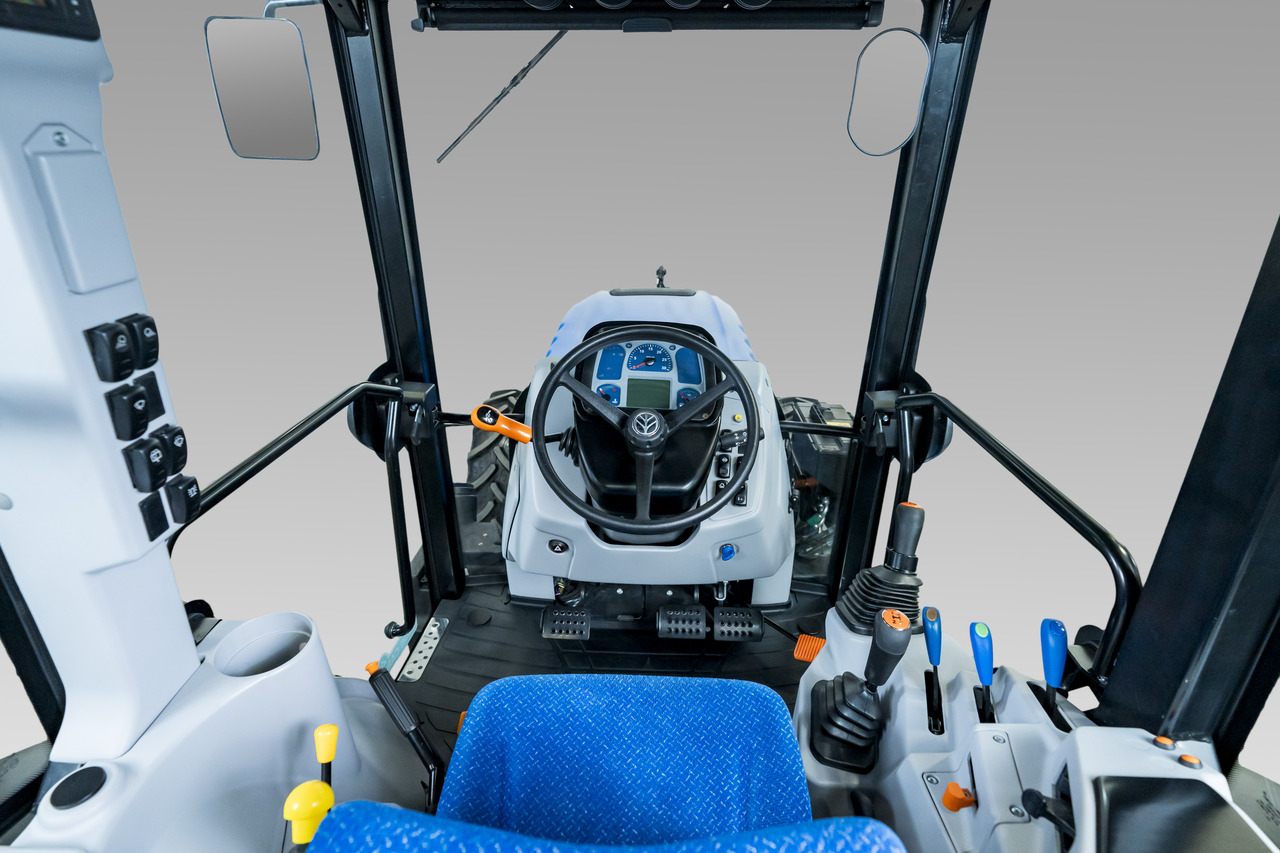

The cab carries over the same flat floor as in the premium machines, with suspended pedals mounted centrally below the adjustable steering column, for increased comfort when at the wheel for long periods.
Opening side and rear windows provide fresh air, while the industry leading BlueCab IV category 4 filtration system ensures protection from chemicals only when needed; a rocker switch electronically switches between CAT IV and CAT 2 filters to prolong carbon filter life. A monitor mounted in the pillar allows the operator to keep an eye on cab pressurisation as well as filter life, to keep protection at a maximum.
From the air suspended seat, the operator can easily reach transmission, hydraulic and pto controls, all of which are mounted on the low profile side consoles – this means greater visibility to the sides of the machine, ideal for mid-mounted tools.
A simple but comprehensive array of radio, bottle and phone storage, and USB sockets finish the cab off to create a comfortable place to spend the day whether spraying, trimming or working undervine at a price point that will appeal to growers of all kinds.
The T4 FS range is available from Haynes Agricultural across the South and South East.
